Four 8 MP / 4K cameras with 4 mm lenses
WIRED 4K PROPERTY SECURITY

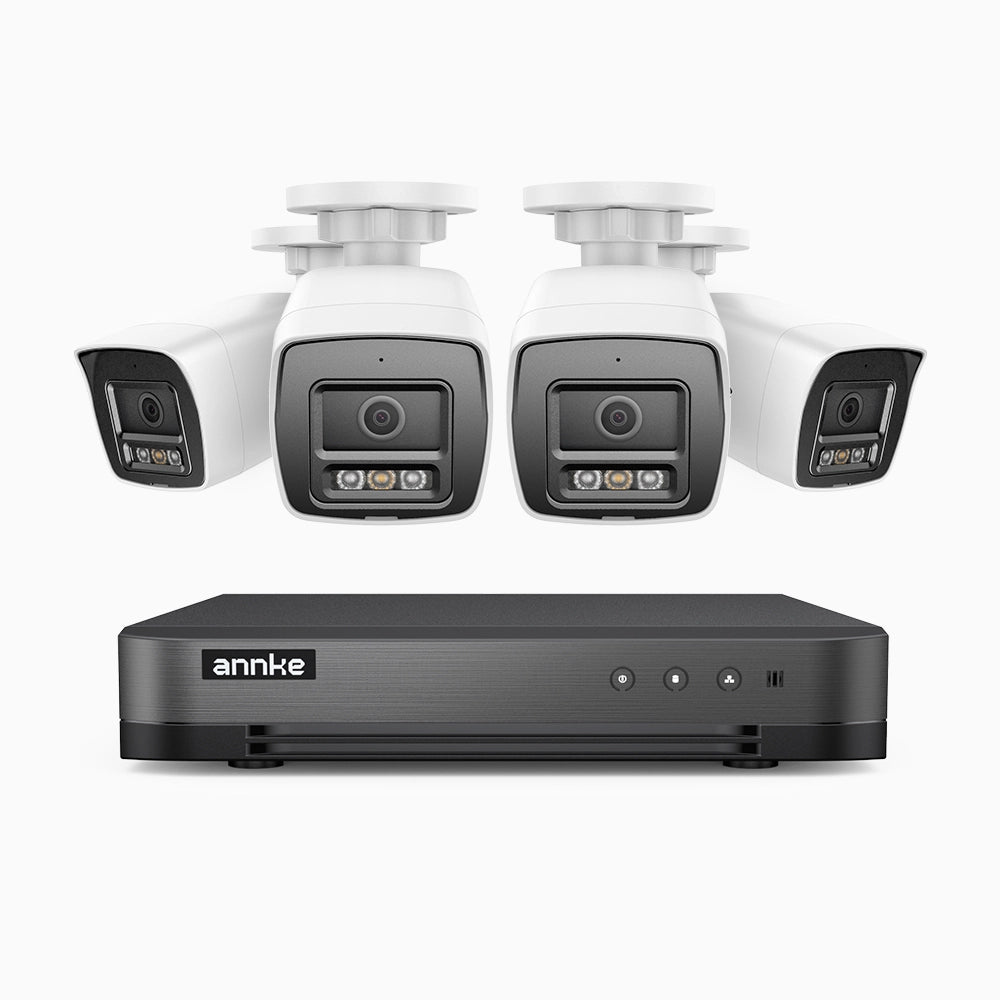

ANNKE H800 4K 8-Channel PoE Security System — 4 Cameras
Four 4K cameras. Local control. Reliable wired coverage.
Cover key areas with four 4K PoE cameras, keep recordings on your own eight-channel NVR, and use human and vehicle detection with remote mobile access.
$609
Available to order
Choose your camera style: Bullet
Choose internal storage: No HDD
Your selected 4K system
- 8-channel PoE NVR with room to expand
- Bullet cameras × 4
- No HDD
- No internal recording drive included
- Remote mobile access
Tracked U.S. delivery in 7 business days after processing.
Audio recording must comply with applicable local laws.
Secure checkout
ClearVero support before and after purchase
Your selected camera and storage options are shown before checkout
COMPLETE WIRED SYSTEM
Cover more now, with room to expand later.
Start with four wired 4K cameras and an eight-channel recorder, then add compatible cameras as your coverage needs grow.
Eight PoE channels for power and data over one cable
Human and vehicle detection
Built-in microphones for live listening and audio recording
Local NVR recording with a compatible internal HDD
ANNKE Vision mobile access plus RTSP and ONVIF Profiles S, T, and G
CHOOSE THE CAMERA PROFILE
Choose the camera shape that fits each location.
All three styles share the same core 4K platform. Compare their shape, dimensions, and night-vision range to choose the best fit.
Bullet
A visible, directional shape for entrances, driveways, gates, and perimeter views.
- Dimensions
- 170.8 × 66 × 69.1 mm
- Camera weight
- 285 g
- Night-vision range
- Smart dual light; night vision up to 30 m

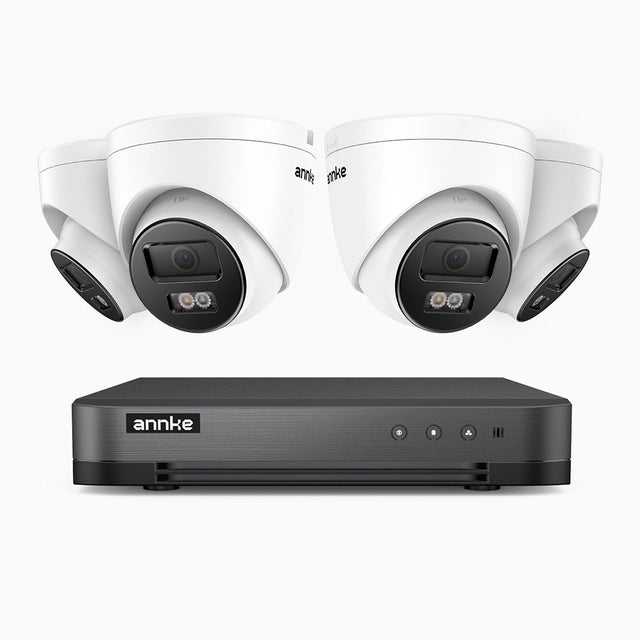

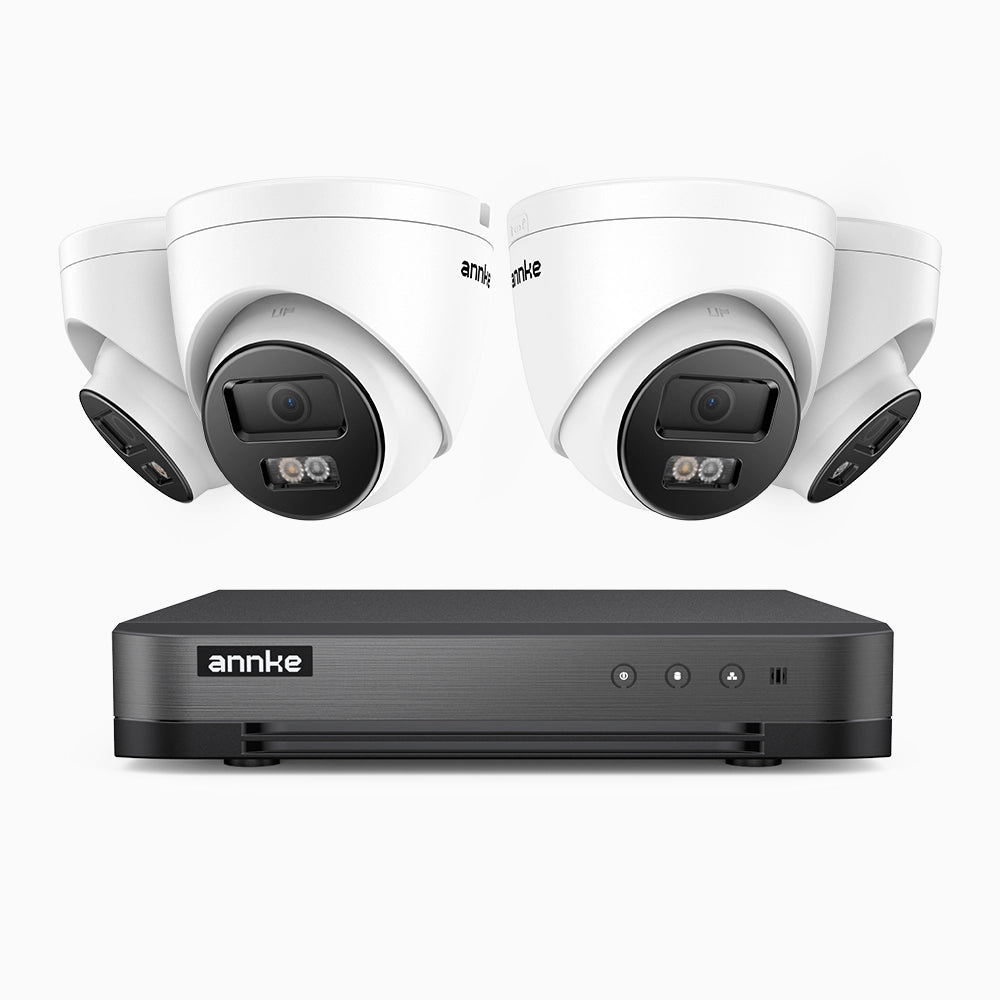

Turret
A compact, flexible profile for wall, ceiling, and soffit placement.
- Dimensions
- Ø110 × 89.2 mm
- Camera weight
- 340 g
- Night-vision range
- IR up to 30 m; white light up to 20 m

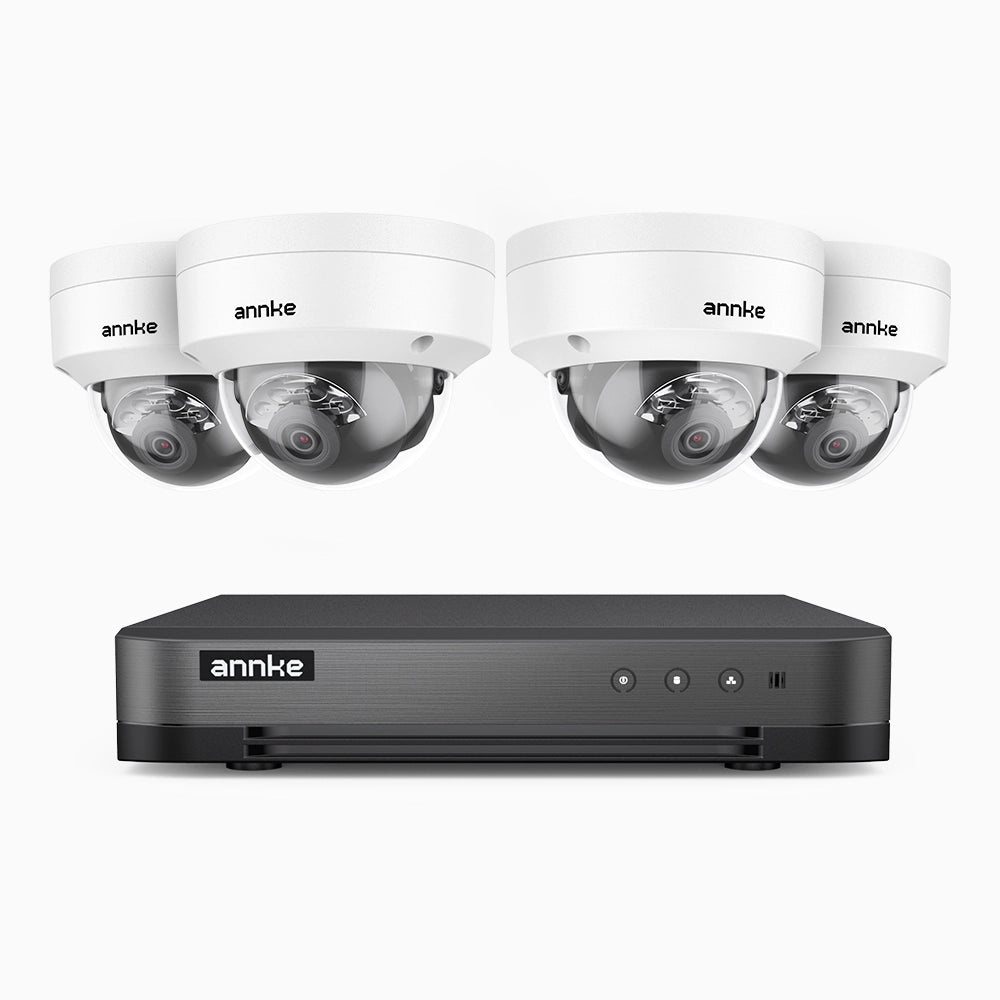

Dome
An enclosed, lower-profile body for discreet or more exposed locations.
- Dimensions
- Ø121.4 × 97.6 mm
- Camera weight
- 550 g
- Night-vision range
- Smart dual light; night vision up to 30 m
LOCAL RECORDING OPTIONS
Choose the recording capacity that fits your routine.
The included 8-channel NVR supports one internal HDD up to 6 TB.
For customers installing their own compatible internal drive.
A practical starting point for lighter recording needs.
A balanced choice for everyday four-camera recording.
More local recording room before older footage is overwritten.
The largest supported internal capacity for longer recording history.
What No HDD means
The NVR and cameras can be configured for live viewing. A compatible internal HDD is required for NVR recording and playback. A newly installed HDD must be initialized, which erases existing data on that drive.

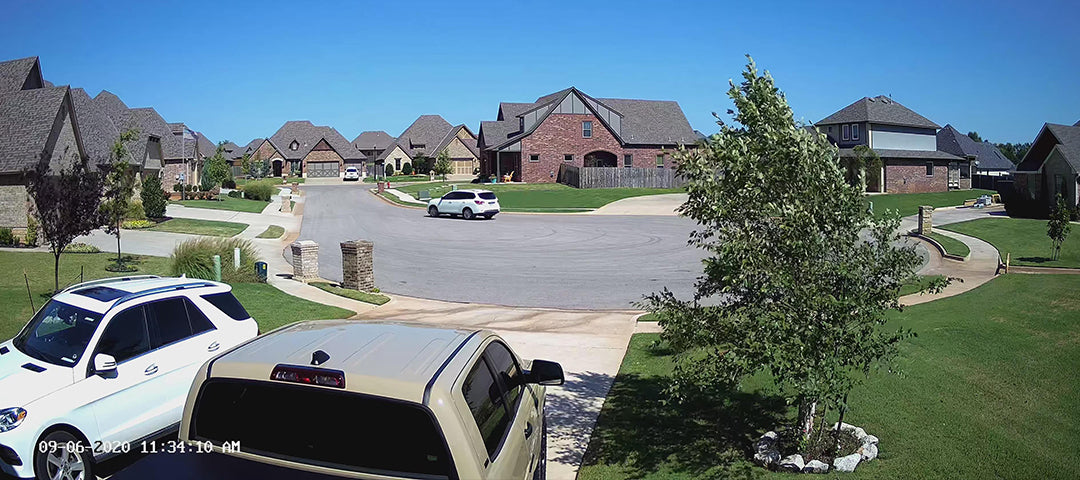

4K IMAGE QUALITY
See more useful detail across every covered area.
Each camera records at up to 3840 × 2160 resolution through a 4 mm lens, helping you review activity with clear 8 MP detail.
FOCUSED MOTION ALERTS
Spend less time reviewing ordinary movement.
Human and vehicle detection helps classify relevant activity so you can focus on the events that matter most.

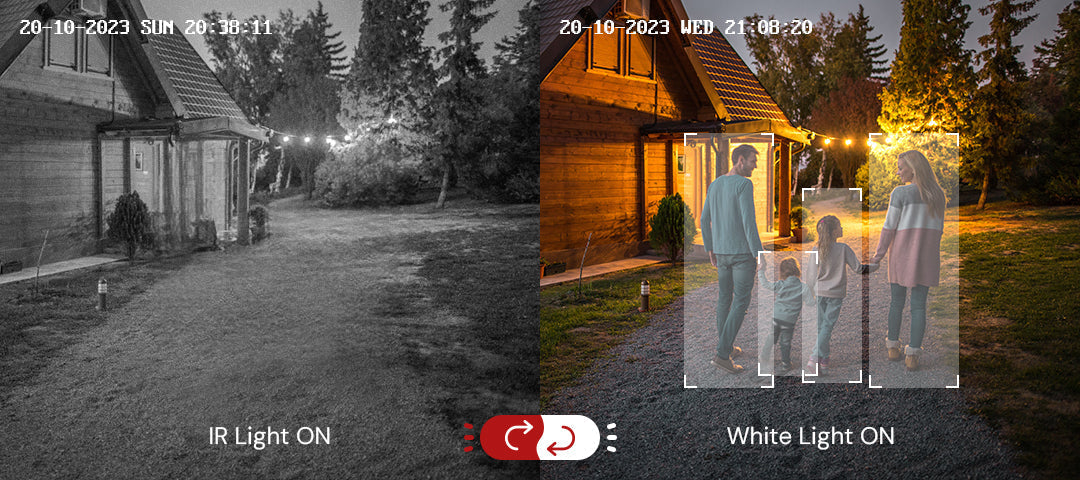

SMART DUAL-LIGHT NIGHT VIEW
Keep visibility after dark with flexible lighting modes.
Smart dual light uses infrared at night and can switch on white light when a moving target is detected for color capture. Full-infrared and full-white modes are also available.
BUILT-IN MICROPHONES
Add audio context to live views and recordings.
Built-in microphones support live listening and audio recording, and audio can be muted where required.
Audio recording must comply with applicable local laws.
ONE-CABLE POE CONNECTION
Simplify every camera run with wired PoE.
IEEE 802.3af PoE carries power and network data on one Ethernet cable from each camera to the NVR.
LOCAL NVR STORAGE
Keep recordings local and use storage efficiently.
The NVR supports H.265+ and other common compression formats. Install a compatible internal HDD for local NVR recording and playback.
MOBILE AND DESKTOP ACCESS
Check live views and playback remotely.
Use the manufacturer’s mobile app for remote live viewing and playback. Compatible desktop software, RTSP, and ONVIF Profiles S, T, and G support additional viewing and integration options.
OUTDOOR CAMERA BUILD
Place cameras outdoors with confidence.
Bullet, Turret, and Dome camera specifications each list IP67 weather resistance. Follow the installation guidance and protect cable connections appropriately.
CUSTOMER FEEDBACK
What customers say
Real feedback from customers who shared their experience with this 4K PoE system through the manufacturer.
1 / 3
CONFIRMED PACKAGE CONTENTS
Everything at the center of your system.
Your selected camera style and storage capacity are confirmed in the order summary. Package contents may vary slightly by configuration.
TECHNICAL SPECIFICATIONS
The details that help you plan with confidence.
Recorder, camera, connection, and placement specifications are grouped for quick review.
System and NVR
- PoE channels
- 8 channels
- Recording and playback
- Up to 8 MP (3840 × 2160)
- Video outputs
- HDMI up to 4K · VGA up to 1080p
- Internal storage
- Supports one internal HDD up to 6 TB
- Compression
- H.264, H.264+, H.265, H.265+, MPEG4
- Interfaces
- 2 × USB 2.0 · 1 × RJ45 10/100 Mbps · 1 input / 1 output, RCA
Shared camera specifications
- Resolution
- 3840 × 2160 (8 MP)
- Lens
- 4 mm
- Field of view
- 78° horizontal, 38° vertical, 96° diagonal
- Detection
- Human and vehicle detection
- Audio
- Built-in microphone
- Protocols
- RTSP, ONVIF Profiles S, T, and G
- Outdoor and power
- IP67 · IEEE 802.3af
Style-specific dimensions and light ranges
Bullet — I91DL
170.8 × 66 × 69.1 mm · 285 g
Smart dual light; night vision up to 30 m
Turret — I91DM
Ø110 × 89.2 mm · 340 g
IR up to 30 m; white light up to 20 m
Dome — I91DF
Ø121.4 × 97.6 mm · 550 g
Smart dual light; night vision up to 30 m
BEFORE INSTALLATION
Plan the connection points before installation.
- Remote access requires network connectivity and a compatible manufacturer account.
- Audio recording must comply with applicable local laws and installation requirements.
- Plan wired Ethernet runs between each camera location and the PoE NVR.
QUESTIONS BEFORE INSTALLATION
Straight answers before you choose.
Review the most common questions about storage, installation, remote access, audio, outdoor placement, and expansion.
What does the No HDD option include?
The system includes the NVR and four cameras but no internal recording drive. A compatible HDD must be installed and initialized for NVR recording and playback; initialization erases existing data on that drive.
Is installation difficult?
Each camera uses one Ethernet cable back to the PoE NVR for both power and data. Plan the cable routes and protect outdoor cable connections before installation.
Can I view the system remotely?
Yes. Use the manufacturer’s mobile app for remote live viewing and playback. Compatible desktop software is also available. Remote access requires network connectivity and a compatible account.
Does the system support audio?
Built-in microphones support live listening and audio recording. Audio can be muted where required. Two-way talk is not supported. Audio recording must comply with applicable local laws.
Can the cameras be installed outdoors?
Yes. Bullet, Turret, and Dome camera specifications each list IP67 weather resistance. Follow the installation guidance and protect all cable connections appropriately.
Can I expand the system later?
Yes. The package includes four cameras, while the NVR provides eight PoE channels for adding compatible cameras later.
BUILD YOUR 4K POE SYSTEM
Four 4K cameras now. Room to grow when you need it.
Your selected system includes four cameras, an eight-channel PoE NVR, your chosen local-storage option, remote mobile access, tracked delivery, and ClearVero support.
